Leica iCON MC1 excavator tilt bucket calibration instructions

A step by step guide to calibrating your excavator bucket

Minimum tools required:

tools required

Bucket Calibration

Process of calibrating a bucket:

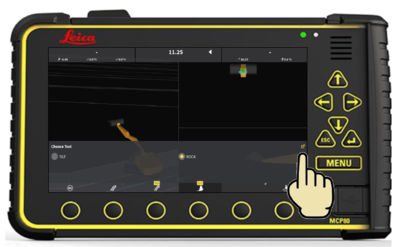

  1. Select from RUN screen

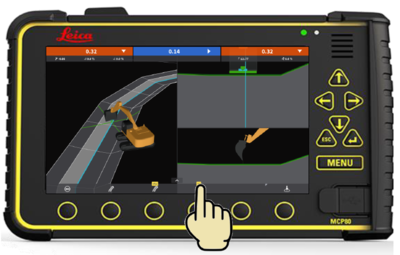

    select rock
  2. Select

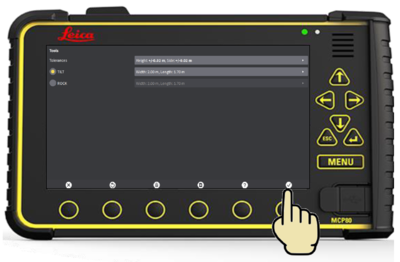

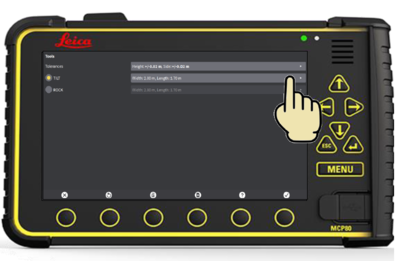

  3. Select next to the bucket you would like to recalibrate (Select to add a new bucket)

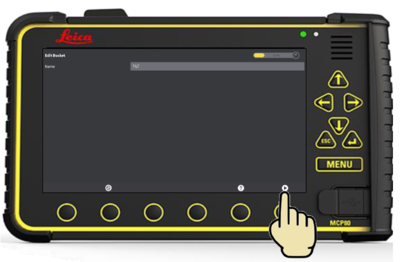

  4. Edit Bucket name if required. Select

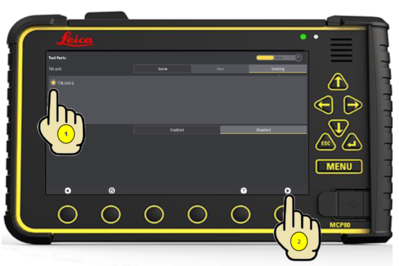

  5. Select Existing Tilt Unit  , then select

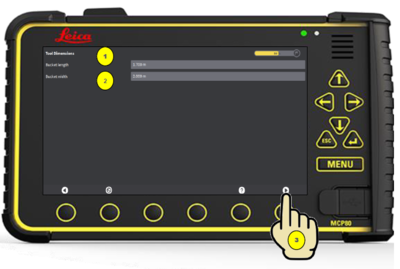

  6. Enter bucket length, width, then select

  7. Select "Plummet"

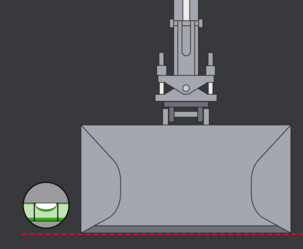

  8. Position Bucket:

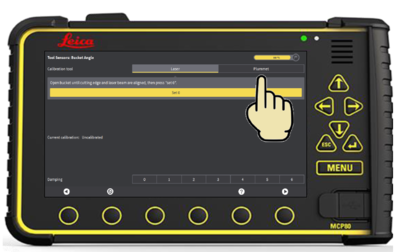

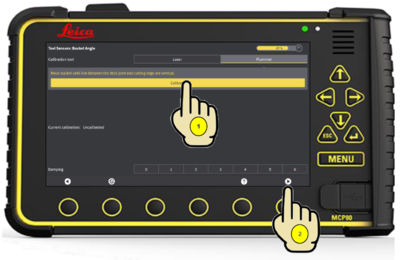

  9. Select "Calibrate" then
  10. Position Bucket:

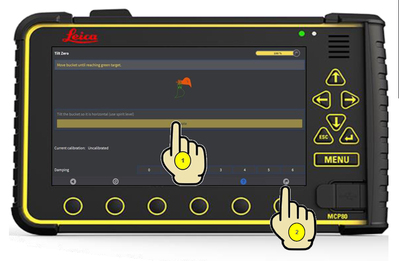

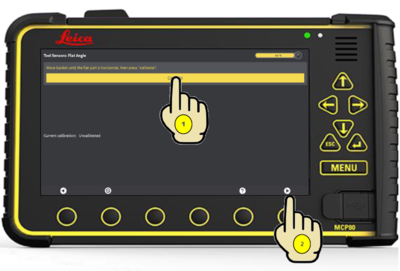

  11. Select "Calibrate" then
  12. Position Bucket:

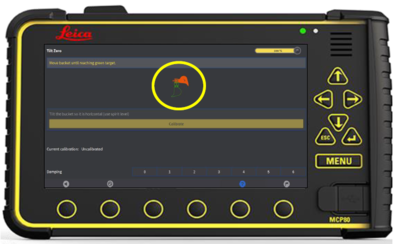

  13. Position Bucket:
     smarttool
  14. Select "Calibrate" then
  15. Select

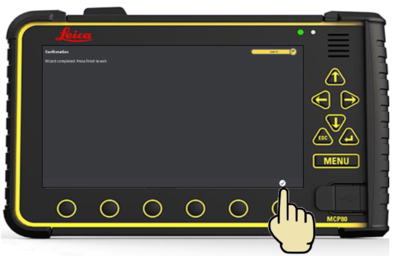

  16. Select
